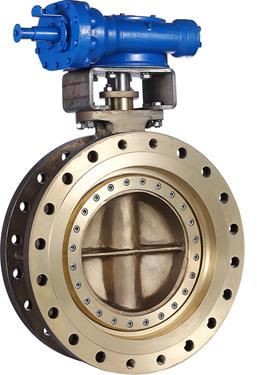

Triple Offset Papiyon Valv Seri 3000 Katalòg

Valv papiyon Triple konpanse bay kliyan solisyon tiyo pwofesyonèl pou kondisyon travay solid. Pou satisfè kondisyon kliyan, ki te bay korozyon rezistan, ki ba oswa ki wo tanperati rezistan, fwotman rezistan ak espesyal tiyo materyèl apwopriye pou divès kalite medya. Nou travay kole kole ak gaz lwil oliv, jenerasyon pouvwa, min, chimik, bwason manje ak endistri maren, pou antisipe bezwen yo epi depase atant yo.

Valv papiyon konpanse trip la te bay bidirectionnelle zewo fuites pèfòmans anwo nan syèl la, ap koule tankou dlo nouvo endistri kategori w ap itilize yon teknoloji ki te deja disponib ak lòt trimès vire konnen tiyo.

Yon angajman solid pou kenbe ak amelyore kalite pèfòmans pwodwi ak sèvis kliyan se nannan nan politik jesyon nou an.

Zewo flit vle di pa gen okenn flit vizib lè yo teste nan presyon ki wo ak dlo ak presyon ki ba ak lè dapre estanda entènasyonal ki egziste deja.

Jarèt zewo flit:

Te bag sele disk reyalize pa fòs koupl egalman chaje sou kwen sele disk laminated, ki gen fonksyon asire zewo flit nan tou de tès idrostatik oswa lè pa API 598.

Ba friksyon:

The valve uses a three-cam structure that means an angular cam is added to acommon metal hard seal bi-cam butterfly valve. This angular cam functions to have any point between the seal ring and the seat ring quickly separated off or contacted during the valve open and close action to leave a low fricion between the seal pairs,the sealing ring and seat relies on the coordination of sealing parts, so it has lower friction and excellent wear resistance when opening and closing,both the disc and the body seat are perfectly round,the disc doesn't touch the body-sealing surface until the valve is completely closed.so,it is low wear.

So renouvlab:

Ka bag la sele dwe respektivman konsève ak ranplase apre domaj aksidan, bag sele sa a ka ranplase pèmèt pou yon sele serye serye ak yon lavi sèvis ki pi long.

Pi bon valè pou lajan:

tiyo papiyon (TOBV) bay pi bon kalite ak pi bon valè ki disponib nan endistri kontwòl la. Konsepsyon inik tiyo sa yo bay fyab rezistan ak antretyen trè fasil nan jaden an. Se konsa, redwi pri a nan kliyan nou yo pandan y ap bay pi bon valè a, tès endepandan ak entèn yo te pwouve kapasite siperyè lavi sèvis nou an, ak ti wonn-fè fèmen nan plis pase 100,000 sik.

Twa kalite konsepsyon sele:

Valv papiyon trip inik bay yonidireksyon sele laminated, bidirectionnelle laminated sealunidirectional sele mou bay kliyan nou an.

Deplasman 1

Se arbr a mete dèyè avyon an nan sifas la sele pou bay yon chemen chèz kontinyèl.

konpanse 2

Yo mete arbr a sou yon bò nan liy santral tiyo / valv la pou pèmèt deplasman sele a soti nan chèz la pandan ouvèti a 90 degre.

Deplasman 3

Syèj la ak liy santral kòn sele yo enkline nan respè liy santral tiyo / valv la. Twazyèm konpanse sa a konplètman elimine fwote.

Materyèl konstriksyon

Kò:	Kabòn asye (A216 WCB, A352 LCB, A217 WC6, A217 WC9, A217 C5) / Nerjaveèi asye (A351 CF8, A351 CF8M, A351 CF3, A351 CF3M) / Duplex Nerjaveèi (A995 4A, A995 56A, A995 tello (A494 N-12MV, A494 CW-12MW, A494 CW-2M) / Inconel Alloy (A494 CY-40, A494 CW-6MC) / Monel Alloy (A494 M35-1)
Disk:	Kabòn asye (A216 WCB, A352 LCB, A217 WC6, A217 WC9, A217 C5) / Nerjaveèi asye (A351 CF8, A351 CF8M, A351 CF3, A351 CF3M) / Duplex Nerjaveèi (A995 4A, A995 56A, A995 tello (A494 N-12MV, A494 CW-12MW, A494 CW-2M) / Inconel Alloy (A494 CY-40, A494 CW-6MC) / Monel Alloy (A494 M35-1)
Tij:	A276 420 / A705 17-4PH(A564 630) / A276 XM-19 / A182 F53 / S20910 / Hastelloy-276 / Inconel 625 / K500
Syèj kò:	Kò se chèz / sifas elektwòd 13Cr / sifas elektwòd SS304 / sifas elektwòd SS316 / sifas elektwòd STL
sele disk:	SS316 plis Graphite / SS316 plis PTFE / Inconel 625 plis PTFE / PTFE / RPTFE / PCTFE

Gwosè Range

• 4"80" (DN100DN2000)

Evalyasyon presyon

• 150Lb600Lb

• PN10, PN16, PN25, PN40, PN64, PN100

DN (mm)	NPS (pous)	Presyon
Klas 150	Klas 300	Klas 600
100	4	•	•	•
150	6	•	•	•
200	8	•	•	•
250	10	•	•	•
300	12	•	•	•
350	14	•	•	•
400	16	•	•	•
450	28	•	•	•
500	20	•	•	•
600	24	•	•	•
700	28	•	•	•
800	32	•	•	•
1000	40	•	•
1200	48	•	•
1400	56	•
1600	64	•
1800	72	•
2000	80	•

Ranje Tanperati

• -140℉ up to 842℉; -60 degree up to 450 degree

Konfigirasyon kò

• Lug

• Double Flanged

• Wafer

• Butt weld

Konfòmite

Konsepsyon valv:	API 609
Fas a fas:	ISO 5752-20 / ISO 5752-13 / DIN F4
Koneksyon:	ASME B16.5 / ASME B16.47 / EN 1092-1 / GOST 12815 / MSS SP-44 / ASME B16.25
Tès:	API 598
Kalite Faktori:	ISO 9001 / ISO 15848

Tès Presyon

• Shell Test Pressure: Nominal Pressure1.5

• Positive Test Pressure: Nominal Pressure 1.1

• Reverse Test Pressure: Nominal Pressure 1.0

• Positive and Reverse Air test Pressure: 0.6Mpa

• 13Cr electrode surfacing

• SS304 electrode surfacing

• SS316 electrode surfacing

• STL electrode surfacing

An reyalite, kliyan nou yo regilyèman ranplase pòtay ki egziste deja, boul ak valv glòb reyalize yon rediksyon sibstansyèl nan espas ak pwa, pandan y ap benefisye imedyatman nan pi ba pri enstalasyon yo.

Yo te itilize valv triple konpanse anpil nan tout aplikasyon kote yo mande izolasyon pozitif. Konsepsyon nan vire trimès ak koupl kouri ki ba anpil pèmèt tou pou koule egzat ak kontwòl presyon. Avèk ourvalves izolasyon vre ak kapasite kontwòl yo ka konbine nan yon sèl pwodwi kont bezwen an abityèl pou de tiyo diferan.

Tablo pèfòmans

• Oil Gas Processing

• Industry of fine chemicals

• Chemical Petrochemical Plants

• Power Generation

• Offshore Platforms

• District Heating

• Pulp Paper

• Steel Mills

• Sugar Mills

• Desalination Plants

• Water Treatment

• Circulating cooling water

• Desalination of sea water

YON VALV KALITE PREMIUM KI MINIMIZE PRÈ OU DE PROPRIETÈ

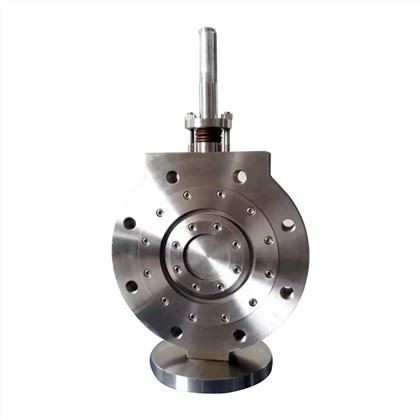

OU PA TA ANJÒM ASOSYE YON PWODWI PREMIUM AK ECONISYON PRI. SETANTANTAN, REALITE A ABYEN DIFEREN AK SEAT FLOTANTE BI-DIRECTIONAL SEAL TRIP OFFSET PAPPILY VALVES.

Se konsa, sa k ap pase lè ou enstale epi kòmanse opere valv la? chèz k ap flote bi-soupap sele trip desantre se fèt nòmalman san antretyen epi li pa bezwen antretyen planifye nan pifò aplikasyon yo, bay ekonomi siplemantè pri atravè sik lavi li yo.

RANLASE SWAP KI GENYEN OU AK SEKIRITE AK SWA BI-DIRECTIONAL SEAT TRIP OFFSET PAPPIY.

Replacing an existing valve can be a necessity but also a strategic choice. floating seat bi-directional seal triple offset valve's bi-directional zero leakage and inherently fire safe design allows our customers to easily replace gate, ball and globe valves and, with our long face-to-face valves (designed in accordance to ASME B16.10), this operation can be carried out without the need of any piping modification.

Sèvi ak tiyo kapab tou kontribye nan diminye echèk sistemik kidonk amelyore Nivo Entegrite Sekirite an jeneral (SIL); an reyalite lè w sèvi ak chèz k ap flote bi-direksyon sele trip konpanse tiyo ak yon seleksyon actuator apwopriye, li posib pou konfigirasyon pwodwi a ede fonksyon pwoteksyon ki nesesè yo.
